CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications

CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications
CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications

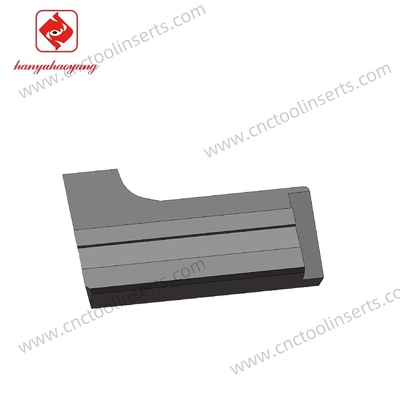

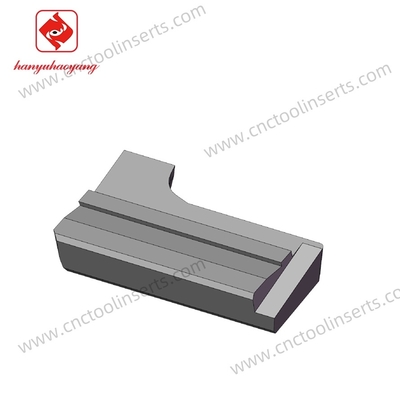

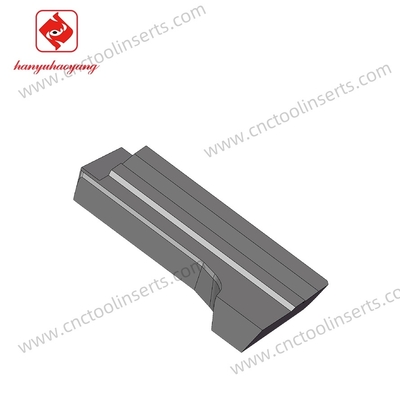

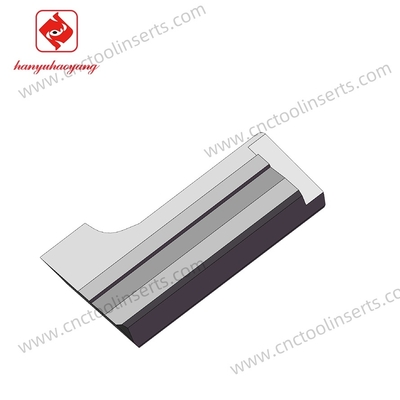

Large Image :  CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications

Product Details:
Place of Origin: CHINA
Brand Name: Hanyuhaoyang
Model Number: HYL170903R0.4
Payment & Shipping Terms:
Minimum Order Quantity: Ten PCS
Packaging Details: Tight packaging, multiple layers of wrapping
Delivery Time: It is determined according to the customer's order.
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Ten million PCS
Contact Now

CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications

Description
Customization Type: Standard Custom Blade Application: Auto, Aero, Mach, Energy, Med, Marine
Model: HYL170903R0.4 Coating: JSB208A
Highlight:

Reaming Inserts for Mold Industries

,

Aerospace Automotive Manufacturing Reaming Inserts

CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated, for Difficult Materials (Excl. High-Temp Alloys)
Product Overview

This CNC reaming insert is specifically designed for difficult-to-machine materials including hardened steels, titanium alloys, stainless steels, and similar challenging applications.

Coating Specifications & Applications

Below is our comprehensive coating reference guide. Contact our customer service for professional solutions tailored to your specific requirements.

Coating Grade Type Key Characteristics Recommended Application
HYB208 PVD For difficult-to-machine materials (excluding superalloys) Bimetals, Copper, Aluminum, Non-ferrous metals
HYB208H PVD Enhanced version of HYB208 for specific composites Bimetals, Copper, Aluminum, Non-ferrous metals
HY08 PVD Uncoated (Substrate optimized for aluminum) Aluminum alloys
HYC208 PVD For solid carbide tools, targeting reactive materials Titanium alloys, Superalloys
HYC508 PVD General purpose, balances wear resistance and toughness Steel, Quenched/Tempered steel, Pre-hardened steel, Cast iron, Stainless steel
HYHH08 CVD Cast iron specialized Cast iron, Ductile iron
HYS208 CVD Multi-functional & General purpose, offers corrosion/wear resistance & insulation Machining: Semi-roughing of cast iron & steel. Other: Corrosion/Wear/Insulation applications. Stage: Roughing to semi-finishing for cast iron.
HY029 CVD High wear resistance, optimized for high-speed machining Heavy-duty, semi-roughing to finishing of steel/cast iron. Excellent for high-speed turning.
HYS108 CVD High-speed machining specialized, for heavy-duty and finishing Heavy-duty, semi-roughing to finishing of steel/cast iron. Excellent for high-speed turning.
Industry Applications
Industry Field Typical Application Scenarios / Specific Components
Automotive Manufacturing Engine cylinder bores, transmission valve body holes, crankshaft bearing holes, connecting rod small end holes, piston pin holes
Aerospace Landing gear actuator holes, hydraulic valve body holes, engine precision shaft holes, titanium alloy structural holes, fuel nozzle holes
Mold Manufacturing Guide pin and guide bushing holes, ejector plate holes, cooling channel holes, slider guide holes, hot runner nozzle holes
General Machinery Hydraulic valve body holes, pneumatic component holes, bearing housing holes, precision shaft sleeve holes, reducer housing holes
Energy Equipment Wind power gearbox holes, nuclear power pump body holes, oil and gas drilling tool holes, valve body holes
Medical Devices Orthopedic implant locating holes, surgical instrument guide holes, precision instrument shaft holes, dental tool holes
Shipbuilding & Offshore Marine engine cylinder liner holes, propeller shaft holes, steering gear hydraulic valve holes, subsea equipment connector holes
Electronics & Precision Instruments Optical lens barrel holes, sensor housing holes, connector socket holes, precision mold guide holes
Frequently Asked Questions
Q: Are you the original manufacturer of the inserts?
A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.
Q: How long is your delivery time?
A: Delivery time is determined according to the customer's order. You can communicate the details directly with the customer service on our website.
Q: What is the best way to contact you?
Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat.
CNC Reaming Insert HYL170903R0.4 – PVD JSB208A Coated for Difficult Materials in Automotive and Aerospace Applications 0

Tag:

Mold Manufacturing Reaming Inserts,

Automotive Reaming Inserts,

Automotive Aerospace Reaming Inserts
