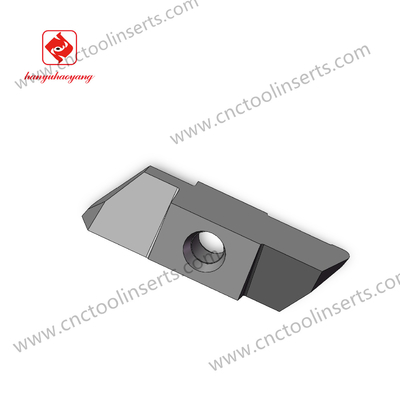

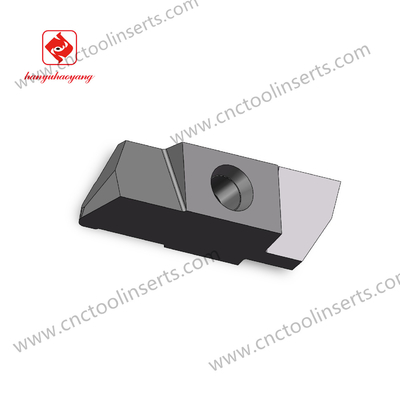

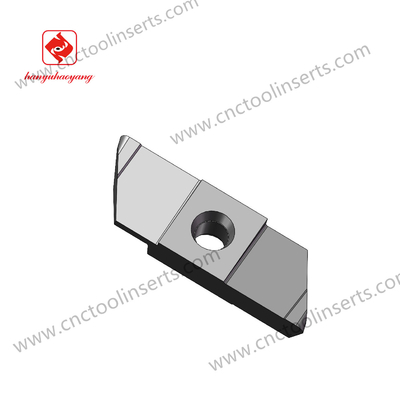

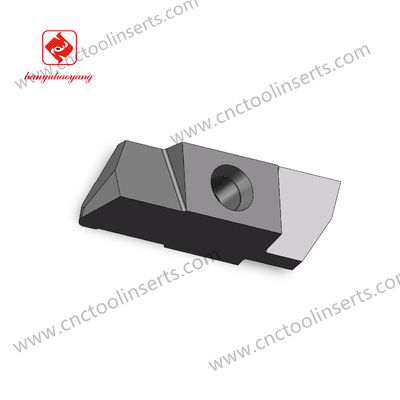

Non - standard grooving insert, slot milling insert, 680202-37.75X7.6X12.2 , mid - range coating material, HYKH06, customizable insert

• General Machining: Processing of keyways and right - angled grooves on shaft - type and disc - type parts, such as keyways on motor shafts and hub grooves on gears. Three - edged or two - edged cemented carbide slot milling inserts are commonly used.
• Mold Manufacturing: Processing of cooling grooves, ejector pin grooves, and parting surface grooves in mold cavities. High - precision slot milling inserts are required to ensure the dimensional consistency and surface finish of the grooves. For example, triangular slot milling inserts are used for processing narrow and deep cooling grooves.
• Automotive Manufacturing: Processing of oil passage grooves in engine blocks, sealing grooves in transmission housings, and wheel hub mounting grooves, etc. High - efficiency coated cemented carbide slot milling inserts are relied on to achieve mass production, taking into account both efficiency and tool life.
• Aerospace: Processing of irregular grooves and weight - reducing grooves on titanium alloy and superalloy structural components. Special AlCrN - coated cemented carbide or ceramic slot milling inserts are needed to withstand the high - temperature cutting environment.
• Electronics and Precision Instruments: Processing of micro - grooves and shallow grooves on small parts (such as sensor housing grooves and connector grooves). Small - sized triangular or single - edged slot milling inserts are commonly used to ensure high precision and low surface roughness.

Company Introduction

As a Chinese enterprise that has been deeply engaged in the cutting - tool field for 14 years, Sichuan Hanyu Haoyang Company owns a modern intelligent production factory, equipped with high - precision grinders, edge - rounding machines and many other high - end devices. It has established a full - process automated production line from raw material inspection and grinding to finished product delivery. Each insert is inspected, with a monthly output of up to 200,000 pieces and an annual production capacity of over 2 million inserts. It ensures efficient delivery through large - scale production. With micron - level processing accuracy and strict tolerance control of ±0.001mm, we can meet the processing requirements for complex tooth shapes in high - end fields such as aerospace and automotive manufacturing, ensuring that each insert reaches the international advanced level.
In terms of R & D and innovation, we have obtained more than 20 national patented technologies, and successfully developed several high - precision and high - quality inserts. Their wear resistance and cutting efficiency have increased by more than 30% compared with traditional products, continuously providing customers with more competitive solutions. Choosing Sichuan Hanyu Haoyang means choosing the dual commitment of technical strength and quality assurance!

FAQ

1. Q: Are you the original manufacturer of the inserts.

A: Yes, we are the original factory for both standard and non - standard inserts with a 14 - year entrepreneurial history. We have our own production lines, as well as design and sales teams.

3. Q: How long is your delivery time?

A: It is determined according to the customer's order.You can communicate the details directly with the customer service on our website.

4. Q: What is the best way to contact you?

A: You can contact us by email, telephone, or online chat.
