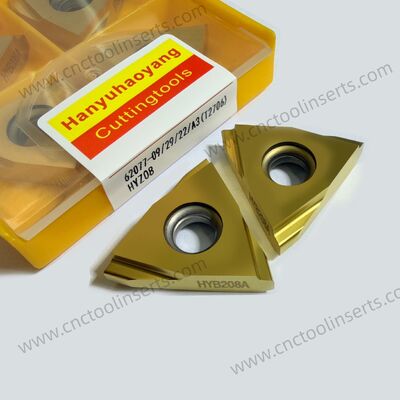

Non-standard grooving insert, model 62077-09/29/22/A3 (T2706)，with PVD coating HYZ08, for Low-speed Machining of Mild Steel

Non-standard grooving insert, model 62077-09/29/22/A3 (T2706)，with PVD coating HYZ08, for Low-speed Machining of Mild Steel
Non-standard grooving insert, model 62077-09/29/22/A3 (T2706)，with PVD coating HYZ08, for Low-speed Machining of Mild Steel Non-standard grooving insert, model 62077-09/29/22/A3 (T2706)，with PVD coating HYZ08, for Low-speed Machining of Mild Steel

Large Image :  Non-standard grooving insert, model 62077-09/29/22/A3 (T2706)，with PVD coating HYZ08, for Low-speed Machining of Mild Steel

Product Details:
Place of Origin: CHINA
Brand Name: Hanyuhaoyang
Model Number: GBA43R/L200-010
Payment & Shipping Terms:
Minimum Order Quantity: ten PCS
Packaging Details: Tight packaging, multiple layers of wrapping
Delivery Time: It is determined according to the customer's order.
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: ten million PCS
Contact Now

Non-standard grooving insert, model 62077-09/29/22/A3 (T2706)，with PVD coating HYZ08, for Low-speed Machining of Mild Steel

Description
Model: 62077-09/29/22/A3 (T2706) Advantage: Improve Machining Accuracy And Enhance Processing Efficiency
Origin: China Category: Custom - Made Model
Industries: Auto, Aero, Mold, Mach, Energy Coating: PVD

Non-Standard Grooving Insert 62077-09/29/22/A3 (T2706)
This PVD-coated HYZ08 grooving insert is engineered for machining all difficult-to-machine materials except high-temperature alloys, delivering exceptional performance in demanding applications.
Grooving Insert Overview
Grooving inserts are precision CNC cutting tools designed to create specific-width grooves and depths on workpiece surfaces. These tools are essential for manufacturing straight grooves, ring grooves, T-slots, and various structural features on external diameters, faces, and internal bores.
Common Grooving Insert Types
  • External Grooving Insert: Specifically designed for groove machining on shaft-type components
  • Internal Grooving Insert: Optimized for groove machining on inner bore walls
  • Face Grooving Insert: Engineered for machining annular grooves on workpiece faces
Industry Applications
Industry Field Typical Applications
Automotive Manufacturing Engine piston ring grooves, transmission valve body oil grooves, driveshaft snap ring grooves
Aerospace Turbine disk tenon grooves, blade locking grooves, titanium alloy structural sealing grooves
Mold Manufacturing Injection mold cooling channels, die-casting mold overflow grooves, slider guide grooves
General Machinery Hydraulic valve body flow channels, bearing cage grooves, construction machinery pin snap ring grooves
Energy Equipment Wind power gearbox oil grooves, oil drill pipe joint grooves, nuclear valve sealing grooves
Medical Devices Orthopedic bone plate locking grooves, surgical instrument positioning grooves, dental implant thread grooves
Electronics / 3C Mobile phone mid-frame antenna slots, heat sink card slots, housing sealing grooves
Shipbuilding & Offshore Engineering Marine engine cylinder liner grooves, propeller shaft keyways, hatch sealing grooves
Frequently Asked Questions
Are you the original manufacturer of the inserts?
Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We maintain our own production lines, design teams, and sales teams.
How long is your delivery time?
Delivery time is determined according to customer order requirements. Please communicate specific details directly with our customer service team.
What is the best way to contact you?
Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat on our website.
Non-standard grooving insert, model 62077-09/29/22/A3 (T2706)，with PVD coating HYZ08, for Low-speed Machining of Mild Steel 0
