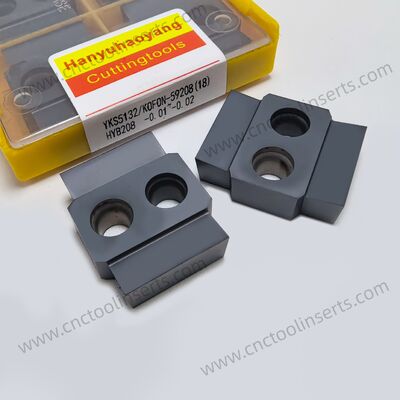

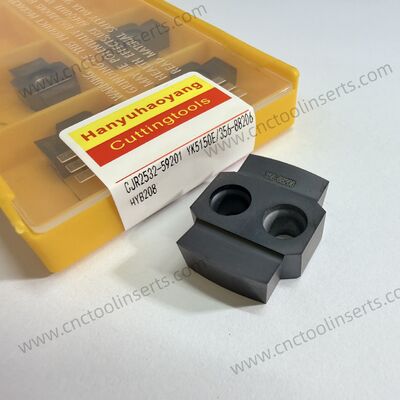

Gear Shaping Insert YK5150E/356-88206 – PVD HYB208 Coated
Designed for difficult-to-machine materials excluding high-temperature alloys, this PVD-coated gear shaping insert delivers precision performance in demanding manufacturing applications.
Product Overview

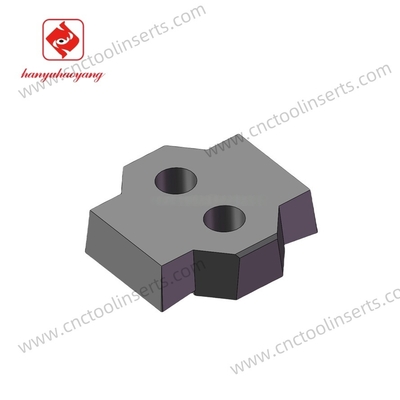

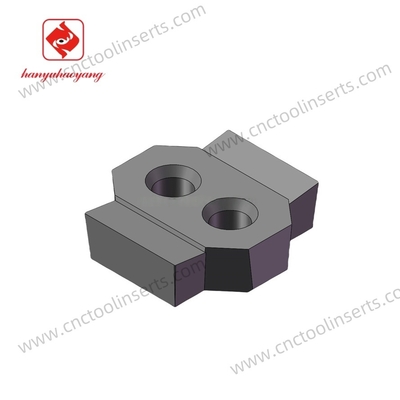

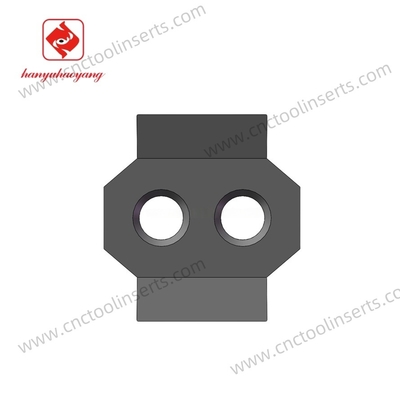

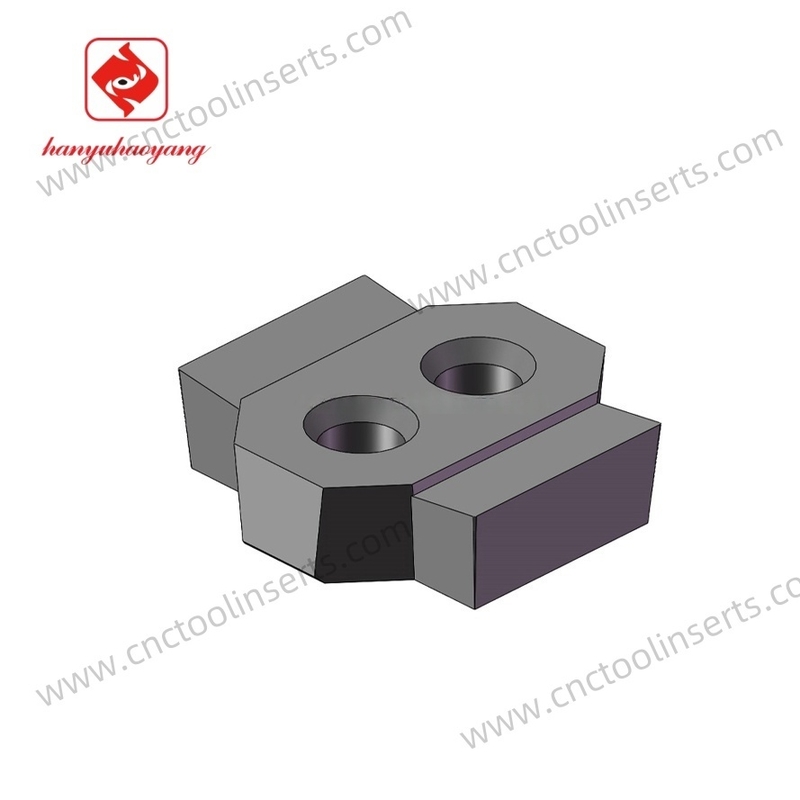

The CNC Gear Shaping Insert Model CIR.YKD5132 1149-59203(8) with PVD HYB208 coating is engineered for all difficult-to-machine materials except high-temperature alloys. These inserts are critical cutting components in gear shaping processes, primarily used for machining tooth grooves in gears, racks, and other tooth-shaped parts.
Performance Advantages
- Wide processing scope: Capable of machining complex structures like internal gears and multi-gear clusters that are challenging for hobbing processes
- High tooth-profile accuracy: Precisely ground cutting edges and stable gear-shaping motion ensure exceptional tooth-profile and tooth-alignment accuracy
- Strong adaptability: Accommodates gears with different modules and pressure angles by changing insert specifications
Industry Applications
Automotive and Auto Parts Manufacturing
Essential for transmission gears, engine timing gears, and components for new energy vehicles where precision and reliability are critical.
Machinery Equipment Manufacturing
- General Machinery: Used in lathe headstocks, reducers, and crane drives, particularly effective for multi-gear clusters with shoulders
- Heavy-Duty Machinery: Cemented carbide inserts provide durability for large-module gears in rolling mills and mining equipment
- Precision Machinery: High-speed steel inserts achieve pitch error ≤5μm for low-noise, high-precision transmission in instruments and textile machinery
Aerospace and Defense Industry
Vital for manufacturing high-performance gears in aero-engines and precision aerospace systems with extreme reliability requirements.
Rail Transit Equipment
Extensively used in manufacturing gears for high-speed trains and EMUs where fatigue strength and accuracy impact operational safety.
Shipbuilding and Offshore Engineering
Widely employed in ship power transmission systems and offshore rig components operating in corrosive environments.
Wind Power Equipment Manufacturing
Significant role in manufacturing gears for main gearboxes, yaw, and pitch control systems in wind turbines.
Frequently Asked Questions
Are you the original manufacturer of the inserts?
Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.
How long is your delivery time?
It is determined according to the customer's order. You can communicate the details directly with the customer service on our website.
What is the best way to contact you?
Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat.
