CNC Gear Shaping Insert (BD9-WG301)535-59205A – PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)

Name: CNC Gear Shaping Insert (BD9-WG301)535-59205A – PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)
Brand: Sichuan Hanyu Haoyang Tools Co., Ltd.
SKU: (BD9-WG301)535-59205A
Availability: InStock

All Products

CNC Cutting Inserts
(99)

Precision Reaming Series
(30)

Cyclone Milling Series
(31)

Special Flexible Groove Series
(10)

Special Gear Shaping Series
(44)

Special Groove Milling Series
(47)

Special Volute Series
(12)

Special Gear Series
(10)

Precision Milling Series
(21)

Grooving Tool Series
(56)

Heavy Duty Peeling Series
(38)

Solid Carbide Tools
(34)

I'm Online Chat Now

CNC Gear Shaping Insert (BD9-WG301)535-59205A – PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)

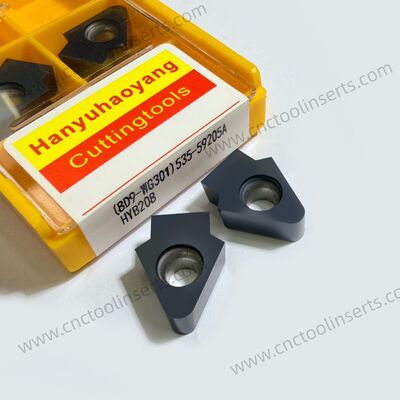

Large Image : CNC Gear Shaping Insert (BD9-WG301)535-59205A – PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)

Product Details:

Place of Origin:	CHINA
Brand Name:	Hanyuhaoyang
Model Number:	(BD9-WG301)535-59205A

Payment & Shipping Terms:

Minimum Order Quantity:	ten PCS
Packaging Details:	Tight packaging, multiple layers of wrapping
Delivery Time:	It is determined according to the customer's order.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	ten million PCS

Contact Now

CNC Gear Shaping Insert (BD9-WG301)535-59205A – PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)

Description

Model:	(BD9-WG301)535-59205A	Advantage:	Improve Machining Accuracy And Enhance Processing Efficiency
Application Fields:	Aero, Auto & Mold	Origin:	China
Category:	Custom - Made Model

CNC Gear Shaping Insert (BD9-WG301)535-59205A

PVD HYB208 Coated Insert for Machining Difficult Materials (Excluding High-Temperature Alloys)

Gear-shaping inserts are essential cutting tools used in gear-shaping processes for machining tooth grooves in gear components such as gears and racks. These inserts, along with blind-groove inserts, are commonly utilized in automotive applications.

Application Industries and Typical Scenarios

Industry Field	Typical Application Scenarios / Specific Components
Automotive Manufacturing	Transmission: multi-gear clusters (with shoulders), synchronizer hubs, reverse gears Engine: timing gears, oil pump gears, balance shaft gears New Energy: reducer planetary gears, differential ring gears
Aerospace	Engine: accessory drive gears, fuel pump gears, ring gears Structural Parts: landing gear actuator gears, door drive sector plates High Precision: gear accuracy IT5-IT7, materials such as superalloys, titanium alloys
Construction Machinery	Slewing Bearings: inner ring gears for excavators, cranes Drive Systems: inner ring gears for travel reducers, slewing reducer gears
Machine Tool Manufacturing	Headstocks: shift gears, sliding gears (with shoulders) Indexing Mechanisms: indexing gear plates, precision racks Feed Systems: internal gears in worm gear pairs
Wind Power Energy	Yaw Systems: yaw ring gears (internal), pitch gears Main Gearboxes: planetary gears, ring gears (large module, high load capacity)
Industrial Robotics	RV Reducers: cycloidal gears, needle roller housing internal gears Harmonic Reducers: flexsplines, circular spline internal gears
Marine & Offshore	Power Systems: marine gearbox ring gears, clutch gears Offshore Platforms: rack lifting systems, slew drive gears
Mold Manufacturing	Gear Molds: powder metallurgy gear mold cavities, injection mold gear tooth profiles Slider Mechanisms: gear racks for internal mold drives

Frequently Asked Questions

Q: Are you the original manufacturer of the inserts?

A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.

Q: How long is your delivery time?

A: Delivery time is determined according to customer orders. You can communicate specific details directly with our customer service team.
