Cyclone Milling Series EIP22033101-M2.39A14.5 --PVD coated inserts for precision threads, worms, screws, and ball screws in difficult-to-machine materials

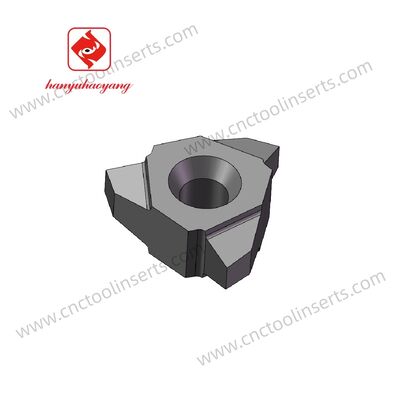

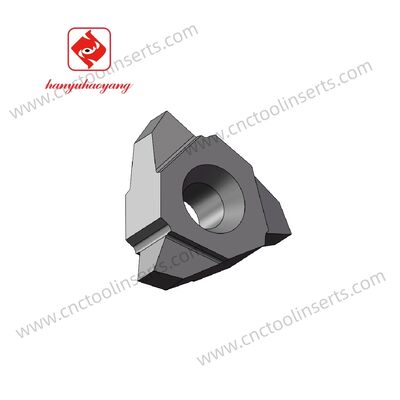

Large Image : Cyclone Milling Series EIP22033101-M2.39A14.5 --PVD coated inserts for precision threads, worms, screws, and ball screws in difficult-to-machine materials

Product Details:

Place of Origin:	CHINA
Brand Name:	Hanyuhaoyang
Model Number:	EIP22033101-M2.39A14.5

Payment & Shipping Terms:

Minimum Order Quantity:	ten PCS
Packaging Details:	Tight packaging, multiple layers of wrapping
Delivery Time:	It is determined according to the customer's order.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	ten million PCS

Contact Now

Cyclone Milling Series EIP22033101-M2.39A14.5 --PVD coated inserts for precision threads, worms, screws, and ball screws in difficult-to-machine materials

Description

Features:	High Precision, High Hardness, Wear Resistance, Replaceability And High-efficiency Products	Customization Type:	Non - Standard Customization Type
Application:	Auto, Aero, Med, Energy, Mach	Model:	EIP22033101-M2.39A14.5
Origin:	CHINA
Highlight:	Whirling Milling Blade EIP22033101 , High Precision Milling Blade EIP22033101

Cyclone Milling Series EIP22033101-M2.39A14.5

PVD coated inserts for precision threads, worms, screws, and ball screws in difficult-to-machine materials

Product Overview

Cyclone milling inserts are high-efficiency, high-precision cutting tools primarily used in the whirling process to machine rotating components such as threads, worms, screws, oil grooves, and ball screws. They are particularly adept at processing high-hardness, high-toughness materials that are difficult to machine with conventional turning.

Application Fields and Workpieces

Application Field	Specific Workpieces
Automotive Manufacturing	Steering screws, brake screws, engine worms, transmission gear shafts
Aerospace	Turbine disk tenon grooves, landing gear actuator threads, titanium alloy fasteners
Medical Devices	Bone screws, implants, dental screws
Energy Equipment	Oil drill pipes, sucker rods, wind power gearbox ring gears, turbine components
General Machinery	Ball screws, worms, screw pump rotors, injection molding machine screws, reducer gears
Mold & Hydraulics	Threaded components in plastic machinery, hydraulic valve spools, threaded mold cores
Instrumentation	Micro threads in precision instruments, optical instrument adjustment screws

Frequently Asked Questions

Q: Are you the original manufacturer of the inserts?

A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.

Q: How long is your delivery time?

A: It is determined according to the customer's order. You can communicate the details directly with the customer service on our website.

Q: What is the best way to contact you?
