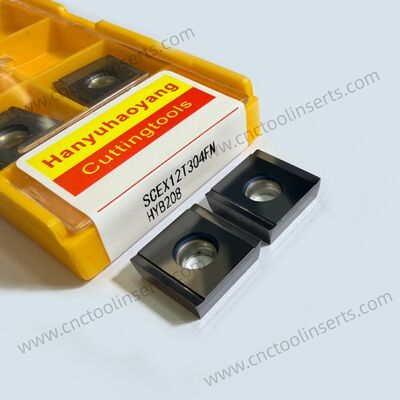

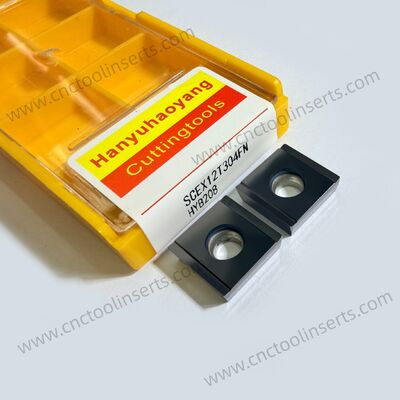

CNC Standard Boring Insert Model SCEX12T304FN - For Boring Applications With Coating/Substrate Options For Various Workpiece Materials

Floating boring tool inserts are precision finishing cutters characterized by their radial self-alignment capability within the tool holder slot, enabling automatic compensation for misalignment between the machine tool and workpiece. This process is primarily implemented on heavy-duty boring mills (e.g., floor-type boring mills, horizontal boring and milling machines) to meet the demands for rigid support and long-stroke machining of large workpieces.

Detailed Application Scenarios:

1. Engine Cylinder Bore Finishing
   Workpiece: Cylinder liner bores in engine blocks for automotive, marine, and heavy-duty machinery applications.

2. Precision Bore Systems for Hydraulic Valves
   Workpiece: Internal oil passage channels and spool valve bores in hydraulic components such as pumps and manifold valves.

3. Aerospace Thin-Wall Component Boring
   Workpiece: Actuator cylinders for aircraft landing gear, engine mounting seats, and connecting components for rocket fuel tanks.

Application Fields

1. Machining: It is widely used in the processing of various mechanical parts. For example, it is used to machine keyways on shaft - type parts and sealing grooves on box - type parts. It is an important processing tool for achieving functions such as part connection and sealing.
2. Mold manufacturing: It is used to process various grooves in mold cavities, such as cooling grooves, ejector pin grooves, slider grooves, etc. It can ensure the accuracy and performance of the mold and improve the service life of the mold.
3. Automotive manufacturing: In the production of automotive parts, it can be used to machine various groove - type structures on parts such as engine blocks, transmission housings, and wheels, meeting the high - precision and high - performance requirements of automotive parts.
4. Aerospace: The processing of parts in the aerospace field has extremely high requirements for accuracy and reliability. The three - edged grooving tool can be used to machine complex groove types on parts such as aircraft structural components and engine inserts, ensuring the quality and performance of the parts.
