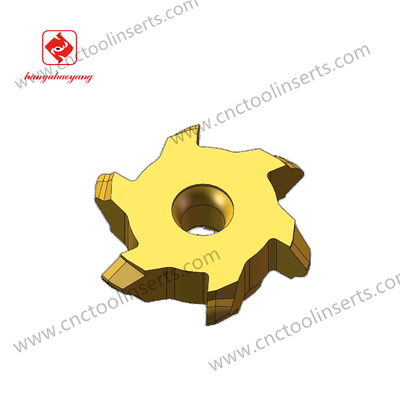

Customizable 60051-C002 Slot Milling Insert HYKH06 with Non-Standard Grooving Design

A six-flute grooving insert is a type of grooving insert featuring six cutting edges.

Below is a detailed introduction:

Performance Advantages

• High Cutting Efficiency: With six cutting edges engaging simultaneously, compared to inserts with fewer flutes, it removes more material per unit time, boosting machining efficiency.
• High Machining Precision: The uniform distribution of cutting edges balances cutting forces, reducing vibration during machining and ensuring dimensional accuracy and surface roughness of the groove. Long Tool Life: Some six-flute grooving inserts are designed for double-sided use, providing 6 usable cutting edges to lower tool costs. Meanwhile, optimized chip-breaking and chip-evacuation designs reduce wear caused by chip contact with cutting edges, extending insert lifespan.
• Enhanced Rigidity: The insert thickness is typically larger, significantly enhancing rigidity compared to traditional products, enabling stable machining even in roughing applications.

Application Scenarios

• Metalworking: Suitable for machining various metals such as alloy steel, stainless steel, and cast iron. It is widely used in grooving processes, including gear tooth grooves, keyways on shaft parts, and cavity grooves in molds within mechanical manufacturing.
• Automotive Manufacturing: Applied in machining oil grooves on engine blocks, grooves on transmission housings, and other components in the automotive industry.
• Woodworking: It is used in wood processing, specifically for solid wood wire groove processing and male - female grooving operations.

Tool Materials

Company Introduction

As a Chinese enterprise that has been deeply engaged in the cutting - tool field for 14 years, Sichuan Hanyu Haoyang Company owns a modern intelligent production factory, equipped with high - precision grinders, edge - rounding machines and many other high - end devices. It has established a full - process automated production line from raw material inspection and grinding to finished product delivery. Each insert is inspected, with a monthly output of up to 200,000 pieces and an annual production capacity of over 2 million inserts. It ensures efficient delivery through large - scale production. With micron - level processing accuracy and strict tolerance control of ±0.001mm, we can meet the processing requirements for complex tooth shapes in high - end fields such as aerospace and automotive manufacturing, ensuring that each insert reaches the international advanced level.
In terms of R & D and innovation, we have obtained more than 20 national patented technologies, and successfully developed several high - precision and high - quality inserts. Their wear resistance and cutting efficiency have increased by more than 30% compared with traditional products, continuously providing customers with more competitive solutions. Choosing Sichuan Hanyu Haoyang means choosing the dual commitment of technical strength and quality assurance!

FAQ

1. Q: Are you the original manufacturer of the inserts.

A: Yes, we are the original factory for both standard and non - standard inserts with a 14 - year entrepreneurial history. We have our own production lines, as well as design and sales teams.

3. Q: How long is your delivery time?

A: It is determined according to the customer's order.You can communicate the details directly with the customer service on our website.

4. Q: What is the best way to contact you?

A: You can contact us by email, telephone, or online chat.
