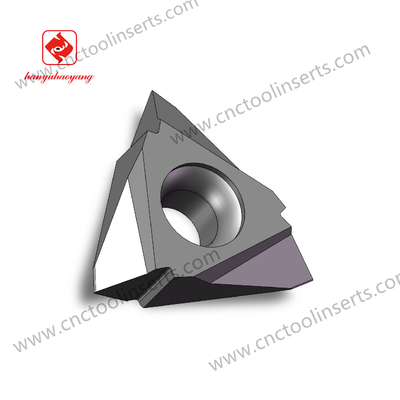

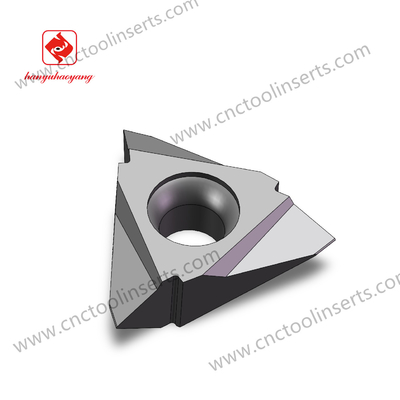

Non Standard Customization Type ,TGC4L025-A, Cemented Carbide Material Replaceability And Products

The three - edged grooving tool is a kind of tool used to cut various materials to form groove - shaped structures. The following is an introduction to its advantages:

Characteristics

1. Efficient cutting: With three cutting edges working simultaneously, compared to single - edged or double - edged grooving tools, it can remove more material per unit time. This effectively shortens the processing time and improves production efficiency.
2. Good stability: The three cutting edges are evenly distributed, making the cutting force more balanced during the cutting process. This reduces the vibration and deviation of the tool, helping to ensure the dimensional accuracy and surface quality of the groove. It is especially suitable for occasions with high - precision processing requirements.
3. Smooth chip evacuation: A large chip - holding space is formed between the three cutting edges, allowing chips to be discharged more smoothly. This avoids problems such as increased tool wear and enlarged surface roughness of the processed part caused by chip accumulation in the groove, which is beneficial to improving processing efficiency and quality.
4. Strong versatility: By choosing different tool materials, size specifications and edge shapes, it can meet the requirements of various materials, different groove types and processing techniques, and is suitable for a variety of cutting and processing scenarios.

Application Fields

1. Machining: It is widely used in the processing of various mechanical parts. For example, it is used to machine keyways on shaft - type parts and sealing grooves on box - type parts. It is an important processing tool for achieving functions such as part connection and sealing.
2. Mold manufacturing: It is used to process various grooves in mold cavities, such as cooling grooves, ejector pin grooves, slider grooves, etc. It can ensure the accuracy and performance of the mold and improve the service life of the mold.
3. Automotive manufacturing: In the production of automotive parts, it can be used to machine various groove - type structures on parts such as engine blocks, transmission housings, and wheels, meeting the high - precision and high - performance requirements of automotive parts.
4. Aerospace: The processing of parts in the aerospace field has extremely high requirements for accuracy and reliability. The three - edged grooving tool can be used to machine complex groove types on parts such as aircraft structural components and engine blades, ensuring the quality and performance of the parts.

Tool Materials

Company Introduction

As a Chinese enterprise that has been deeply engaged in the cutting - tool field for 14 years, Sichuan Hanyu Haoyang Company owns a modern intelligent production factory, equipped with high - precision grinders, edge - rounding machines and many other high - end devices. It has established a full - process automated production line from raw material inspection and grinding to finished product delivery. Each insert is inspected, with a monthly output of up to 200,000 pieces and an annual production capacity of over 2 million inserts. It ensures efficient delivery through large - scale production. With micron - level processing accuracy and strict tolerance control of ±0.001mm, we can meet the processing requirements for complex tooth shapes in high - end fields such as aerospace and automotive manufacturing, ensuring that each insert reaches the international advanced level.
In terms of R & D and innovation, we have obtained more than 20 national patented technologies, and successfully developed several high - precision and high - quality inserts. Their wear resistance and cutting efficiency have increased by more than 30% compared with traditional products, continuously providing customers with more competitive solutions. Choosing Sichuan Hanyu Haoyang means choosing the dual commitment of technical strength and quality assurance!

FAQ

1. Q: Are you the original manufacturer of the inserts.

A: Yes, we are the original factory for both standard and non - standard inserts with a 14 - year entrepreneurial history. We have our own production lines, as well as design and sales teams.

3. Q: How long is your delivery time?

A: It is determined according to the customer's order.You can communicate the details directly with the customer service on our website.

4. Q: What is the best way to contact you?

A: You can contact us by email, telephone, or online chat.
