PVD Coated Gear Shaping Insert for Difficult Materials in Aerospace and Automotive Manufacturing

Name: PVD Coated Gear Shaping Insert for Difficult Materials in Aerospace and Automotive Manufacturing
Brand: Sichuan Hanyu Haoyang Tools Co., Ltd.
SKU: YKS5120BX3-604-59201
Availability: InStock

All Products

CNC Cutting Inserts
(97)

Precision Reaming Series
(30)

Cyclone Milling Series
(31)

Special Flexible Groove Series
(10)

Special Gear Shaping Series
(34)

Special Groove Milling Series
(45)

Special Volute Series
(12)

Special Gear Series
(10)

Precision Milling Series
(21)

Grooving Tool Series
(59)

Heavy Duty Peeling Series
(38)

Solid Carbide Tools
(34)

I'm Online Chat Now

PVD Coated Gear Shaping Insert for Difficult Materials in Aerospace and Automotive Manufacturing

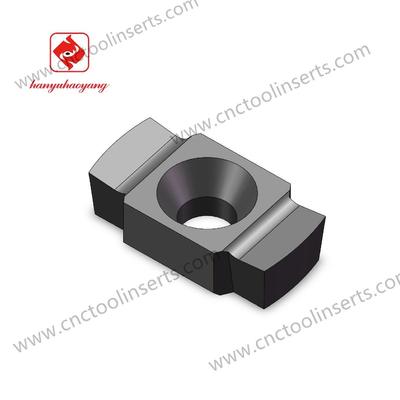

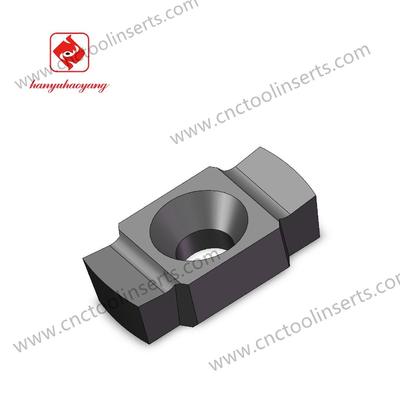

Large Image : PVD Coated Gear Shaping Insert for Difficult Materials in Aerospace and Automotive Manufacturing

Product Details:

Place of Origin:	CHINA
Brand Name:	Hanyuhaoyang
Model Number:	YKS5120BX3-604-59201

Payment & Shipping Terms:

Minimum Order Quantity:	ten PCS
Packaging Details:	Tight packaging, multiple layers of wrapping
Delivery Time:	It is determined according to the customer's order.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	ten million PCS

Contact Now

PVD Coated Gear Shaping Insert for Difficult Materials in Aerospace and Automotive Manufacturing

Description

Model:	YKS5120BX3-604-59201	Coating:	PVD
Application Fields:	Aerospace, Automotive Manufacturing, Mold Processing	Origin:	China
Category:	Custom - Made Model
Highlight:	HY-YKS5120BX3-604-59201 Milling Inserts , Precision Cemented Carbide Milling Inserts , Cemented Carbide Milling Inserts

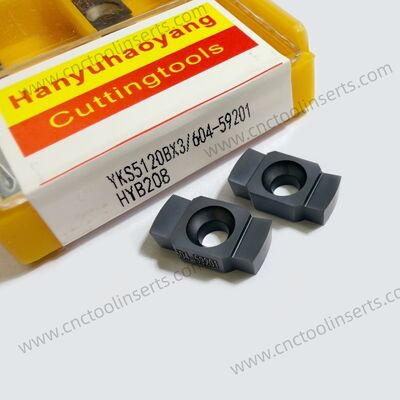

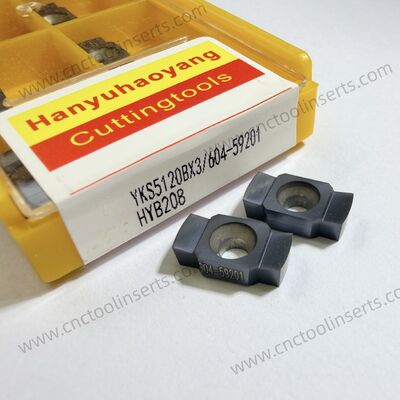

Gear Shaping Milling Insert YKS5120BX3/604-59201 – PVD HYB208A Coated, for Difficult Materials (Excl. High-Temp Alloys)

CNC Gear Shaping Insert YKS5120BX3/604-59201 - PVD HYB208 Coated. Specialized cutting tool for difficult materials (excluding high-temperature alloys).

Gear-shaping inserts are precision tool components that perform direct cutting operations during gear-shaping processes. They are primarily used for machining tooth grooves in gear-shaped components such as gears and racks. These inserts, along with blind-groove inserts, are commonly employed in automotive manufacturing applications.

Coating Specifications

Coating Grade	Type	Key Characteristics	Recommended Application
HYB208	PVD	For difficult-to-machine materials (excluding superalloys)	Bimetals, Copper, Aluminum, Non-ferrous metals
HYB208H	PVD	Enhanced version of HYB208 for specific composites	Bimetals, Copper, Aluminum, Non-ferrous metals
HY08	PVD	Uncoated (Substrate optimized for aluminum)	Aluminum alloys
HYC208	PVD	For solid carbide tools targeting reactive materials	Titanium alloys, Superalloys
HYC508	PVD	General purpose, balances wear resistance and toughness	Steel, Quenched/Tempered steel, Pre-hardened steel, Cast iron, Stainless steel
HYHH08	CVD	Cast iron specialized	Cast iron, Ductile iron
HYS208	CVD	Multi-functional & General purpose, offers corrosion/wear resistance & insulation	Machining: Semi-roughing of cast iron & steel. Other: Corrosion/Wear/Insulation applications. Stage: Roughing to semi-finishing for cast iron.
HY029	CVD	High wear resistance, optimized for high-speed machining	Heavy-duty, semi-roughing to finishing of steel/cast iron. Excellent for high-speed turning.
HYS108	CVD	High-speed machining specialized, for heavy-duty and finishing	Heavy-duty, semi-roughing to finishing of steel/cast iron. Excellent for high-speed turning.

Application Industries and Typical Scenarios

Industry Field	Typical Application Scenarios / Specific Components
Automotive Manufacturing	Transmission: multi-gear clusters (with shoulders), synchronizer hubs, reverse gears Engine: timing gears, oil pump gears, balance shaft gears New Energy: reducer planetary gears, differential ring gears
Aerospace	Engine: accessory drive gears, fuel pump gears, ring gears Structural Parts: landing gear actuator gears, door drive sector plates High Precision: gear accuracy IT5-IT7, materials such as superalloys, titanium alloys
Construction Machinery	Slewing Bearings: inner ring gears for excavators, cranes Drive Systems: inner ring gears for travel reducers, slewing reducer gears
Machine Tool Manufacturing	Headstocks: shift gears, sliding gears (with shoulders) Indexing Mechanisms: indexing gear plates, precision racks Feed Systems: internal gears in worm gear pairs
Wind Power Energy	Yaw Systems: yaw ring gears (internal), pitch gears Main Gearboxes: planetary gears, ring gears (large module, high load capacity)
Industrial Robotics	RV Reducers: cycloidal gears, needle roller housing internal gears Harmonic Reducers: flexsplines, circular spline internal gears
Marine & Offshore	Power Systems: marine gearbox ring gears, clutch gears Offshore Platforms: rack lifting systems, slew drive gears
Mold Manufacturing	Gear Molds: powder metallurgy gear mold cavities, injection mold gear tooth profiles Slider Mechanisms: gear racks for internal mold drives

Frequently Asked Questions

Q: Are you the original manufacturer of the inserts?

A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.

Q: How long is your delivery time?

A: It is determined according to the customer's order. You can communicate the details directly with the customer service on our website.

Q: What is the best way to contact you?

A: Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat.
