CNC Grooving Insert GBA43R200-010 -- PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)

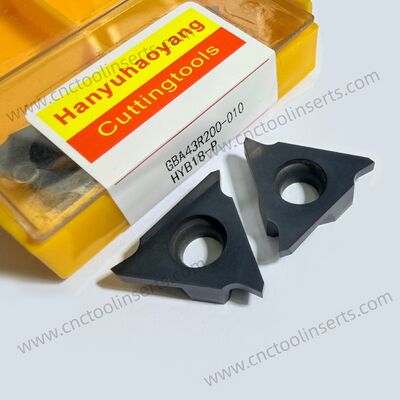

Large Image : CNC Grooving Insert GBA43R200-010 -- PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)

Product Details:

Place of Origin:	CHINA
Brand Name:	Hanyuhaoyang
Model Number:	HYGBA43R150

Payment & Shipping Terms:

Minimum Order Quantity:	ten PCS
Packaging Details:	Tight packaging, multiple layers of wrapping
Delivery Time:	It is determined according to the customer's order.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	ten million PCS

Contact Now

CNC Grooving Insert GBA43R200-010 -- PVD HYB208 Coated, for Difficult Materials (Excl. High-Temp Alloys)

Description

Customization Type:	Non - Standard Customization Type	Application:	Mach, Aero, Auto, Energy, Med, Mold, Ship
Model:	GBA43R200-010	Origin:	CHINA
Coating:	PVD
Highlight:	HYGBA43R150 CNC Insert , Optimal Machining Results CNC Insert , Slot Milling CNC Insert

CNC Grooving Insert GBA43R200-010

PVD HYB208 Coated, for Difficult Materials (Excluding High-Temperature Alloys)

Product Overview

CNC Grooving Insert TN1604370-040 with PVD Coating HYB208. This three-edged grooving tool is designed for cutting various materials to form groove-shaped structures, specifically engineered for machining difficult-to-machine materials excluding high-temperature alloys.

Key Features

High cutting efficiency and excellent stability
Smooth chip evacuation for optimal performance
Strong versatility across multiple applications
PVD Coating HYB208 for enhanced durability

Application Fields

Machining: Widely used for processing mechanical parts including keyways on shaft-type parts and sealing grooves on box-type parts
Mold Manufacturing: Processes various grooves in mold cavities including cooling grooves, ejector pin grooves, and slider grooves
Automotive Manufacturing: Machines groove-type structures on engine blocks, transmission housings, and wheels
Aerospace: Processes complex groove types on aircraft structural components and engine blades

Tool Material Specifications

Manufactured from carbide material offering exceptional hardness and wear resistance. Features excellent heat resistance and chemical stability, maintaining optimal cutting performance under high-speed conditions. Suitable for processing high-hardness materials including quenched steel, stainless steel, and titanium alloy.

Frequently Asked Questions

Are you the original manufacturer of the inserts?

Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.

How long is your delivery time?

It is determined according to the customer's order. You can communicate the details directly with the customer service on our website.

What is the best way to contact you?
