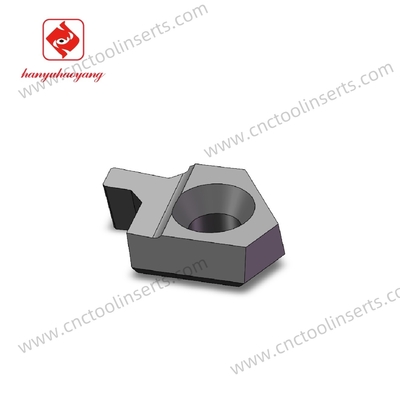

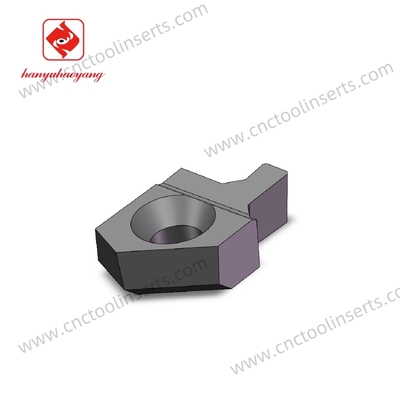

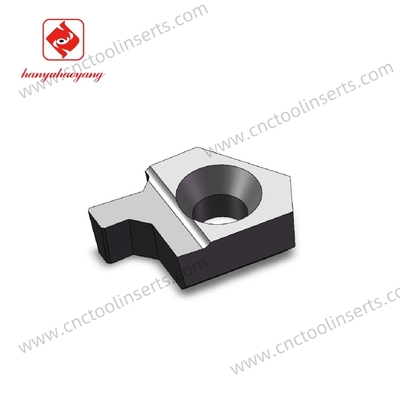

Name: High Hardness And Wear Resistance Cemented Carbide Gear Shaping Milling Insert CHB022AQ1-22510-ZH-06 For CNC Machine Tools
Brand: Sichuan Hanyu Haoyang Tools Co., Ltd.
SKU: CHB022AQ1-22510-ZH-06
Availability: InStock

Place of Origin:

CHINA

Brand Name:

Hanyuhaoyang

Model Number:

CHB022AQ1-22510-ZH-06

Minimum Order Quantity:

ten pieces

Packaging Details:

Tight packaging, multiple layers of wrapping

Delivery Time:

It is determined according to the customer's order.

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

ten million pieces

Features:

High Precision,High Hardness And Wear Resistance Replaceability And Cost - Effectiveness

Model:

CHB022AQ1-22510-ZH-06

Origin:

CHINA

Customization Type:

Non - Standard Customization Type

Application:

Automotive Parts Manufacturing Industry

Highlight:

CHB022AQ1 Carbide Insert

Cemented Carbide Gear Shaping Insert

22510 Wear Resistance Carbide Insert

Gear shaping and milling inserts are cutting - tool components used in fields such as gear processing. Here is a detailed introduction to them:
Features
High precision: It can ensure the precision of gear processing, making the machined gear teeth accurate in shape and uniform in pitch, thus improving the transmission efficiency and service life of the gear.
High hardness and wear resistance: Usually made of materials such as cemented carbide, it has high hardness and wear resistance. It can maintain a sharp cutting edge during long - term cutting, reduce the wear and replacement frequency of the cutting tool, and improve processing efficiency.
Good toughness: While ensuring hardness, it also has certain toughness. It can withstand the impact load during the cutting process, is not prone to chipping and other damage, and ensures the stability of the processing process.
Replaceability and cost - effectiveness: Most are indexable inserts. When one cutting edge of the insert is worn, it can be used continuously by rotating or replacing the insert, reducing the use cost of the cutting tool.

Core functions:
Process various types of gears such as spur gears, helical gears, internal gears, and external gears.
Machine special - profile workpieces like spline shafts and cams.
Meet the mass - production requirements of high - precision transmission parts.

Company Introduction

As a Chinese enterprise that has been deeply engaged in the cutting - tool field for 14 years, Sichuan Hanyu Haoyang Company owns a modern intelligent production factory, equipped with high - precision grinders, edge - rounding machines and many other high - end devices. It has established a full - process automated production line from raw material inspection and grinding to finished product delivery. Each insert is inspected, with a monthly output of up to 200,000 pieces and an annual production capacity of over 2 million inserts. It ensures efficient delivery through large - scale production. With micron - level processing accuracy and strict tolerance control of ±0.001mm, we can meet the processing requirements for complex tooth shapes in high - end fields such as aerospace and automotive manufacturing, ensuring that each insert reaches the international advanced level.

In terms of R & D and innovation, we have obtained more than 20 national patented technologies, and successfully developed several high - precision and high - quality inserts. Their wear resistance and cutting efficiency have increased by more than 30% compared with traditional products, continuously providing customers with more competitive solutions. Choosing Sichuan Hanyu Haoyang means choosing the dual commitment of technical strength and quality assurance!

High Hardness And Wear Resistance Cemented Carbide Gear Shaping Milling Insert CHB022AQ1-22510-ZH-06 For CNC Machine Tools 0

FAQ

1. Q: Are you the original manufacturer of the inserts.

A: Yes, we are the original factory for both standard and non - standard inserts with a 14 - year entrepreneurial history. We have our own production lines, as well as design and sales teams.

3. Q: How long is your delivery time?

A: It is determined according to the customer's order.You can communicate the details directly with the customer service on our website.

4. Q: What is the best way to contact you?

A: You can contact us by email, telephone, or online chat.
