CNC precision milling series inserts, model 226718 - 37.75×7.6×12.2, with PVD coating HYB208, applicable to machining all difficult - to - machine materials except superalloys.

Name: CNC precision milling series inserts, model 226718 - 37.75×7.6×12.2, with PVD coating HYB208, applicable to machining all difficult - to - machine materials except superalloys.
Brand: Sichuan Hanyu Haoyang Tools Co., Ltd.
SKU: 226718 - 37.75×7.6×12.2
Availability: InStock

All Products

CNC Cutting Inserts
(100)

Precision Reaming Series
(30)

Cyclone Milling Series
(34)

Special Flexible Groove Series
(9)

Special Gear Shaping Series
(61)

Special Groove Milling Series
(47)

Special Volute Series
(21)

Special Gear Series
(10)

Precision Milling Series
(22)

Grooving Tool Series
(55)

Heavy Duty Peeling Series
(38)

Solid Carbide Tools
(34)

I'm Online Chat Now

CNC precision milling series inserts, model 226718 - 37.75×7.6×12.2, with PVD coating HYB208, applicable to machining all difficult - to - machine materials except superalloys.

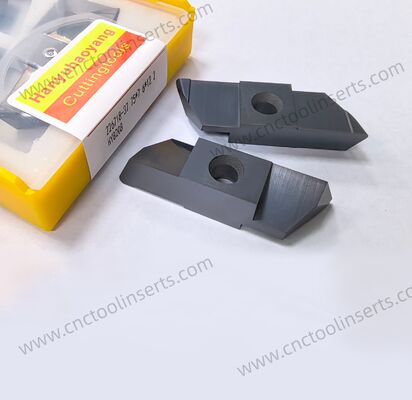

Large Image : CNC precision milling series inserts, model 226718 - 37.75×7.6×12.2, with PVD coating HYB208, applicable to machining all difficult - to - machine materials except superalloys.

Product Details:

Place of Origin:	CHINA
Brand Name:	Hanyuhaoyang
Model Number:	226718 - 37.75×7.6×12.2

Payment & Shipping Terms:

Minimum Order Quantity:	ten PCS
Packaging Details:	Tight packaging, multiple layers of wrapping
Delivery Time:	It is determined according to the customer's order.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	ten million PCS

Contact Now

CNC precision milling series inserts, model 226718 - 37.75×7.6×12.2, with PVD coating HYB208, applicable to machining all difficult - to - machine materials except superalloys.

Description

Features:	High Precision,High Hardness And Wear Resistance Replaceability And Cost - Effectiveness	Customization Type:	Non - Standard Customization Type
Model:	226718 - 37.75×7.6×12.2	Origin:	CHINA
Color:	Dark Gray

CNC precision milling series inserts, model 226718 - 37.75×7.6×12.2, with PVD coating HYB208, applicable to machining all difficult - to - machine materials except superalloys.

CNC precision milling series inserts, model 226718 - 37.75×7.6×12.2, with PVD coating HYB208, applicable to machining all difficult - to - machine materials except superalloys. 0

Here is a partial list of our coating types and their application references. You may contact our website customer service or leave your contact details for us to provide you with a professional solution.

Coating Grade	Type	Key Characteristics	Recommended Application
HYB208	PVD	For difficult-to-machine materials (excluding superalloys)	Bimetals, Copper, Aluminum, Non-ferrous metals
HYB208H	PVD	Enhanced version of HYB208 for specific composites	Bimetals, Copper, Aluminum, Non-ferrous metals
HY08	PVD	Uncoated (Substrate optimized for aluminum)	Aluminum alloys
HYC208	PVD	For solid carbide tools (e.g., end mills), targeting reactive materials	Titanium alloys, Superalloys
HYC508	PVD	General purpose, balances wear resistance and toughness	Steel, Quenched/Tempered steel, Pre-hardened steel, Cast iron, Stainless steel
HYHH08	CVD	Cast iron specialized	Cast iron, Ductile iron
HYS208	CVD	Multi-functional & General purpose, offers corrosion/wear resistance & insulation.	Machining: Semi-roughing of cast iron & steel. Other: Corrosion/Wear/Insulation applications. Stage: Roughing to semi-finishing for cast iron.
HY029	CVD	Hig h wear resistance, optimized for high-speed machining.	Heavy-duty, semi-roughing to finishing of steel/cast iron. Excellent for high-speed turning.
HYS108	CVD	High-speed machining specialized, for heavy-duty and finishing.	Heavy-duty, semi-roughing to finishing of steel/cast iron. Excellent for high-speed turning.

Milling inserts are manufactured in numerous variants and find extensive application across the modern manufacturing sector. The following table summarizes their primary application sectors and scenarios:

Application Sector	Typical Components
Aerospace Manufacturing	Aircraft structural components, Engine parts, Titanium alloy frames
Automotive Manufacturing	Engine blocks/cylinder heads, Transmission housings, Gearbox casings, Brake discs, Crankshafts
Mold Manufacturing	Injection molds, Die-casting molds, Mold cores and inserts
General Machinery & Components	Various shafts, Flanges, Hydraulic components, Valve blocks
Construction Machinery	Crane slewing bearings
Energy & Heavy Machinery	Wind power gearboxes, Turbine housings

FAQ:

1. Q: Are you the original manufacturer of the inserts.

A: Yes, we are the original factory for both standard and non - standard inserts with a 14 - year entrepreneurial history. We have our own production lines, as well as design and sales teams.

3. Q: How long is your delivery time?

A: It is determined according to the customer's order.You can communicate the details directly with the customer service on our website.

4. Q: What is the best way to contact you?

A: Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat.

CNC precision milling series inserts, model 226718 - 37.75×7.6×12.2, with PVD coating HYB208, applicable to machining all difficult - to - machine materials except superalloys. 1
