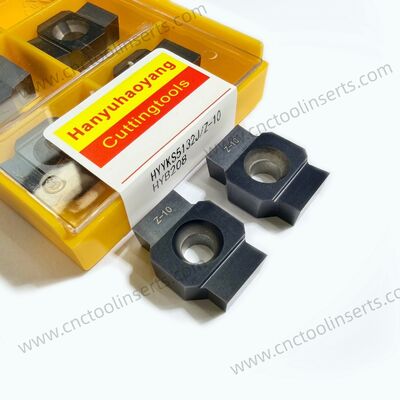

CNC Gear Shaping Insert HYYKS5132J Z-10 – PVD HYB208 Coated, for All Difficult Materials (Excl. High-Temp Alloys).

CNC Gear Shaping Insert HYYKS5132J Z-10 – PVD HYB208 Coated, for All Difficult Materials (Excl. High-Temp Alloys).
CNC Gear Shaping Insert HYYKS5132J Z-10 – PVD HYB208 Coated, for All Difficult Materials (Excl. High-Temp Alloys).

Large Image :  CNC Gear Shaping Insert HYYKS5132J Z-10 – PVD HYB208 Coated, for All Difficult Materials (Excl. High-Temp Alloys).

Product Details:
Place of Origin: CHINA
Brand Name: Hanyuhaoyang
Model Number: HYYKS5132J Z-10
Payment & Shipping Terms:
Minimum Order Quantity: ten PCS
Packaging Details: Tight packaging, multiple layers of wrapping
Delivery Time: It is determined according to the customer's order.
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: ten million PCS
Contact Now

CNC Gear Shaping Insert HYYKS5132J Z-10 – PVD HYB208 Coated, for All Difficult Materials (Excl. High-Temp Alloys).

Description
Model: HYYKS5132J Z-10 Advantage: Improve Machining Accuracy And Enhance Processing Efficiency
Application Fields: Auto, Aero, Construction Mach, Machine Tool, Wind, Etc. Origin: China
Coating: PVD
Highlight:

cemented carbide gear shaping inserts

,

non-standard CNC milling cutters

,

HYYKS5132J-Z-12 milling inserts

CNC Gear Shaping Insert HYYKS5132J Z-10 – PVD HYB208 Coated
CNC Gear Shaping Insert HYYKS5132J Z-10 - PVD HYB208 Coated, designed for machining difficult materials (excluding high-temperature alloys). Gear-shaping inserts are critical tool components directly involved in cutting during gear-shaping processing, primarily used for machining tooth grooves of gear-shaped parts such as gears and racks.
CNC Gear Shaping Insert HYYKS5132J Z-10 – PVD HYB208 Coated, for All Difficult Materials (Excl. High-Temp Alloys). 0
Application Industries and Typical Scenarios
Industry Field Typical Application Scenarios / Specific Components
Automotive Manufacturing Transmission: multi-gear clusters (with shoulders), synchronizer hubs, reverse gears
Engine: timing gears, oil pump gears, balance shaft gears
New Energy: reducer planetary gears, differential ring gears
Aerospace Engine: accessory drive gears, fuel pump gears, ring gears
Structural Parts: landing gear actuator gears, door drive sector plates
High Precision: gear accuracy IT5-IT7, materials such as superalloys, titanium alloys
Construction Machinery Slewing Bearings: inner ring gears for excavators, cranes
Drive Systems: inner ring gears for travel reducers, slewing reducer gears
Machine Tool Manufacturing Headstocks: shift gears, sliding gears (with shoulders)
Indexing Mechanisms: indexing gear plates, precision racks
Feed Systems: internal gears in worm gear pairs
Wind Power Energy Yaw Systems: yaw ring gears (internal), pitch gears
Main Gearboxes: planetary gears, ring gears (large module, high load capacity)
Industrial Robotics RV Reducers: cycloidal gears, needle roller housing internal gears
Harmonic Reducers: flexsplines, circular spline internal gears
Marine & Offshore Power Systems: marine gearbox ring gears, clutch gears
Offshore Platforms: rack lifting systems, slew drive gears
Mold Manufacturing Gear Molds: powder metallurgy gear mold cavities, injection mold gear tooth profiles
Slider Mechanisms: gear racks for internal mold drives
Frequently Asked Questions
Q: Are you the original manufacturer of the inserts?
A: Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.
Q: How long is your delivery time?
A: Delivery time is determined according to the customer's order. You can communicate the details directly with the customer service on our website.
Q: What is the best way to contact you?
A: Contact us via email, WhatsApp, WeChat (ID: hanyuhaoyangtools), phone (+86 13880606307), or live chat.
