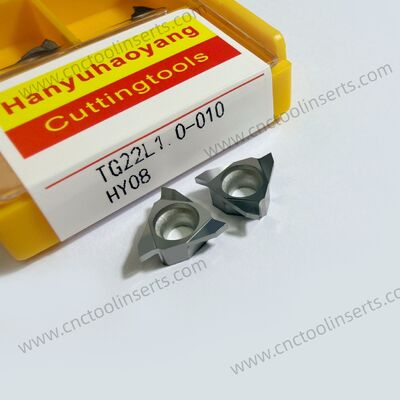

Non-standard grooving insert, model TG22L1.0-010, uncoated, suitable for machining all difficult-to-machine materials except high-temperature alloys.

Non-standard grooving insert, model TG22L1.0-010, uncoated, suitable for machining all difficult-to-machine materials except high-temperature alloys.
Non-standard grooving insert, model TG22L1.0-010, uncoated, suitable for machining all difficult-to-machine materials except high-temperature alloys.

Large Image :  Non-standard grooving insert, model TG22L1.0-010, uncoated, suitable for machining all difficult-to-machine materials except high-temperature alloys.

Product Details:
Place of Origin: CHINA
Brand Name: Hanyuhaoyang
Model Number: TG22L1.0-010
Payment & Shipping Terms:
Minimum Order Quantity: ten PCS
Packaging Details: Tight packaging, multiple layers of wrapping
Delivery Time: It is determined according to the customer's order.
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: ten million PCS
Contact Now

Non-standard grooving insert, model TG22L1.0-010, uncoated, suitable for machining all difficult-to-machine materials except high-temperature alloys.

Description
Model: TG22L1.0-010 Advantage: Improve Machining Accuracy And Enhance Processing Efficiency
Origin: China Category: Custom - Made Model
Industries: Auto, Aero, Mold, Mach, Energy

Non-Standard Grooving Insert TG22L1.0-010
Uncoated grooving insert designed for machining all difficult-to-machine materials except high-temperature alloys.
Product Overview
A precision CNC cutting tool engineered to machine grooves of specific widths and depths on workpieces. This versatile insert is widely applied for cutting straight grooves, ring grooves, T-slots, and other structural features on the outer diameter, face, or inner bore of workpieces.
Grooving Insert Types
  • External grooving insert: Used for groove machining on shaft-type parts
  • Internal grooving insert: Used for groove machining on inner bore walls
  • Face grooving insert: Used for machining annular grooves on workpiece faces
Application Industries
Industry Field Typical Applications
Automotive Manufacturing Engine piston ring grooves, transmission valve body oil grooves, driveshaft snap ring grooves
Aerospace Turbine disk tenon grooves, blade locking grooves, titanium alloy structural sealing grooves
Mold Manufacturing Injection mold cooling channels, die-casting mold overflow grooves, slider guide grooves
General Machinery Hydraulic valve body flow channels, bearing cage grooves, construction machinery pin snap ring grooves
Energy Equipment Wind power gearbox oil grooves, oil drill pipe joint grooves, nuclear valve sealing grooves
Medical Devices Orthopedic bone plate locking grooves, surgical instrument positioning grooves, dental implant thread grooves
Electronics / 3C Mobile phone mid-frame antenna slots, heat sink card slots, housing sealing grooves
Shipbuilding & Offshore Engineering Marine engine cylinder liner grooves, propeller shaft keyways, hatch sealing grooves
CNC Volute Cutting Insert HY43X15X7.5XR3-17° – High-Strength Machining Tool
Frequently Asked Questions
Are you the original manufacturer of the inserts?
Yes, we are the original factory for both standard and non-standard inserts with a 14-year entrepreneurial history. We have our own production lines, as well as design and sales teams.
How long is your delivery time?
Delivery time is determined according to the customer's order. You can communicate the details directly with the customer service on our website.
What is the best way to contact you?
Email: Contact via our website
WhatsApp: Available
WeChat: hanyuhaoyangtools
Phone: +86 13880606307
Live Chat: Available on our website
